Changeable Backlight
Without an outer LED aperture, the button text or icon appears orange in standby or OFF status and changes to white when the switch is activated.

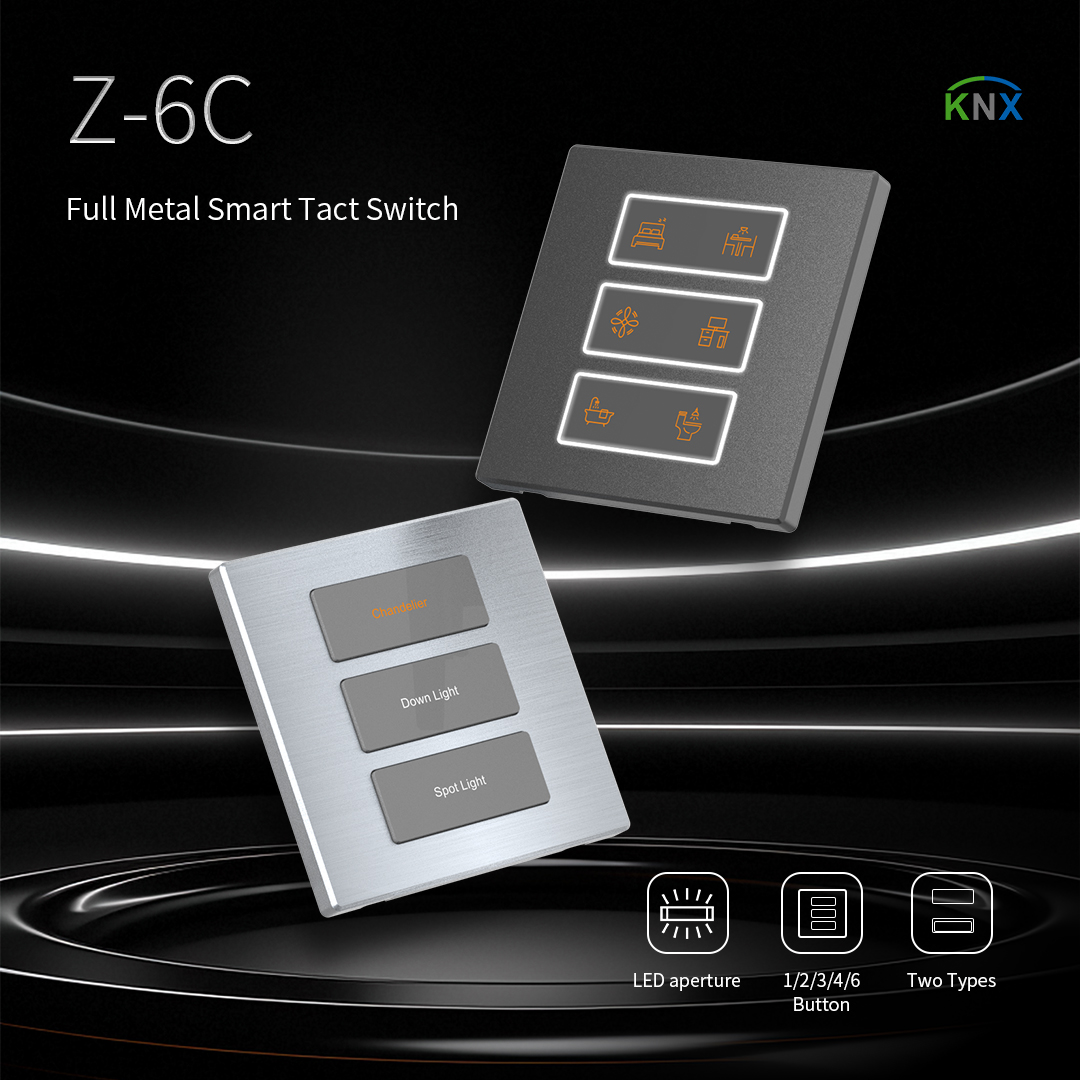

Created for KNX building control installations, the Z-6C Series brings together a metal panel design, tactile buttons and a choice of coordinated configurations.
With different button materials, illumination styles, key counts and frame finishes, the series can be specified for residential, hospitality and commercial interiors.

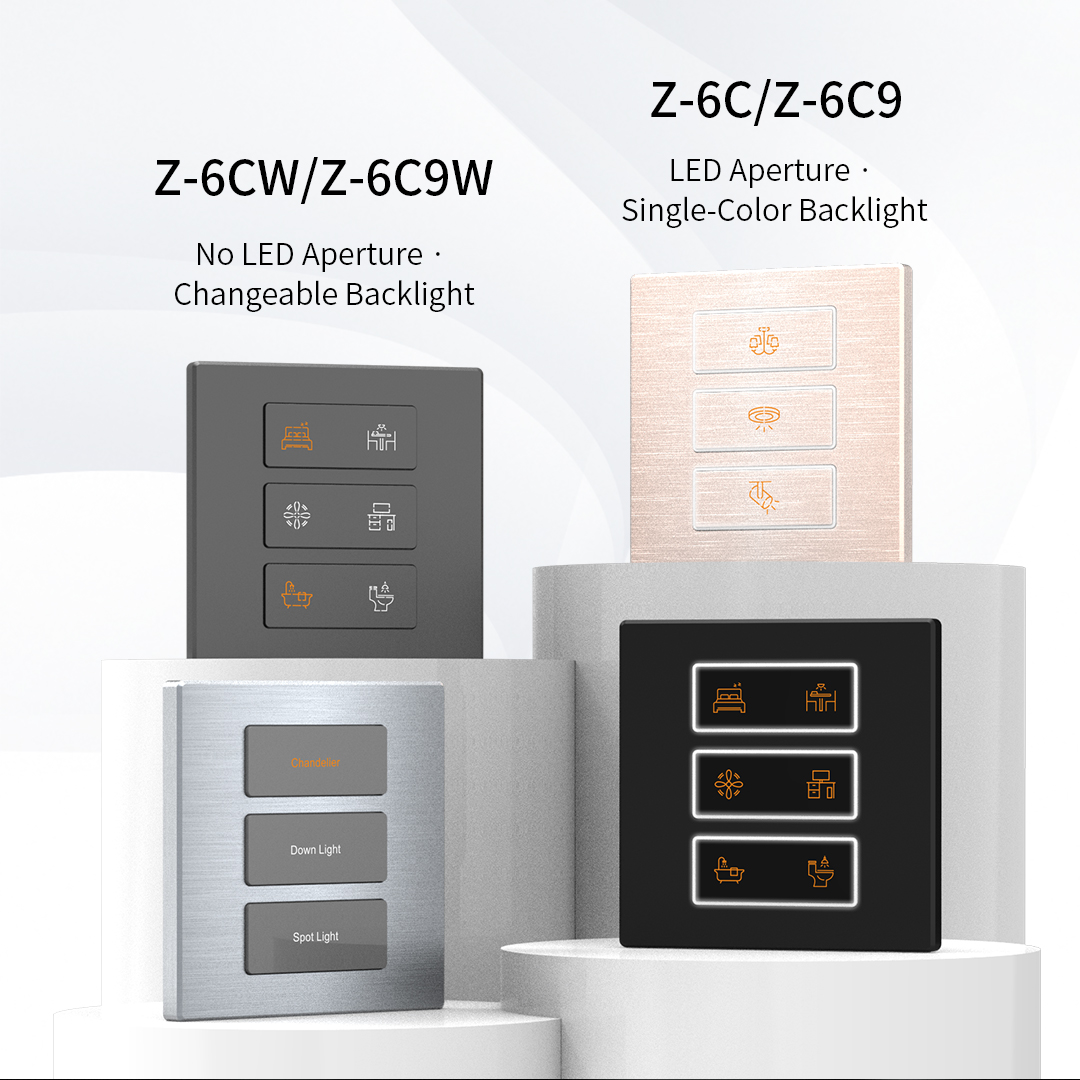

Two illumination designs offer different ways to display button status while maintaining a coordinated panel appearance.
Without an outer LED aperture, the button text or icon appears orange in standby or OFF status and changes to white when the switch is activated.
The button text or icon remains orange, while the outer LED aperture illuminates white when the switch is activated.

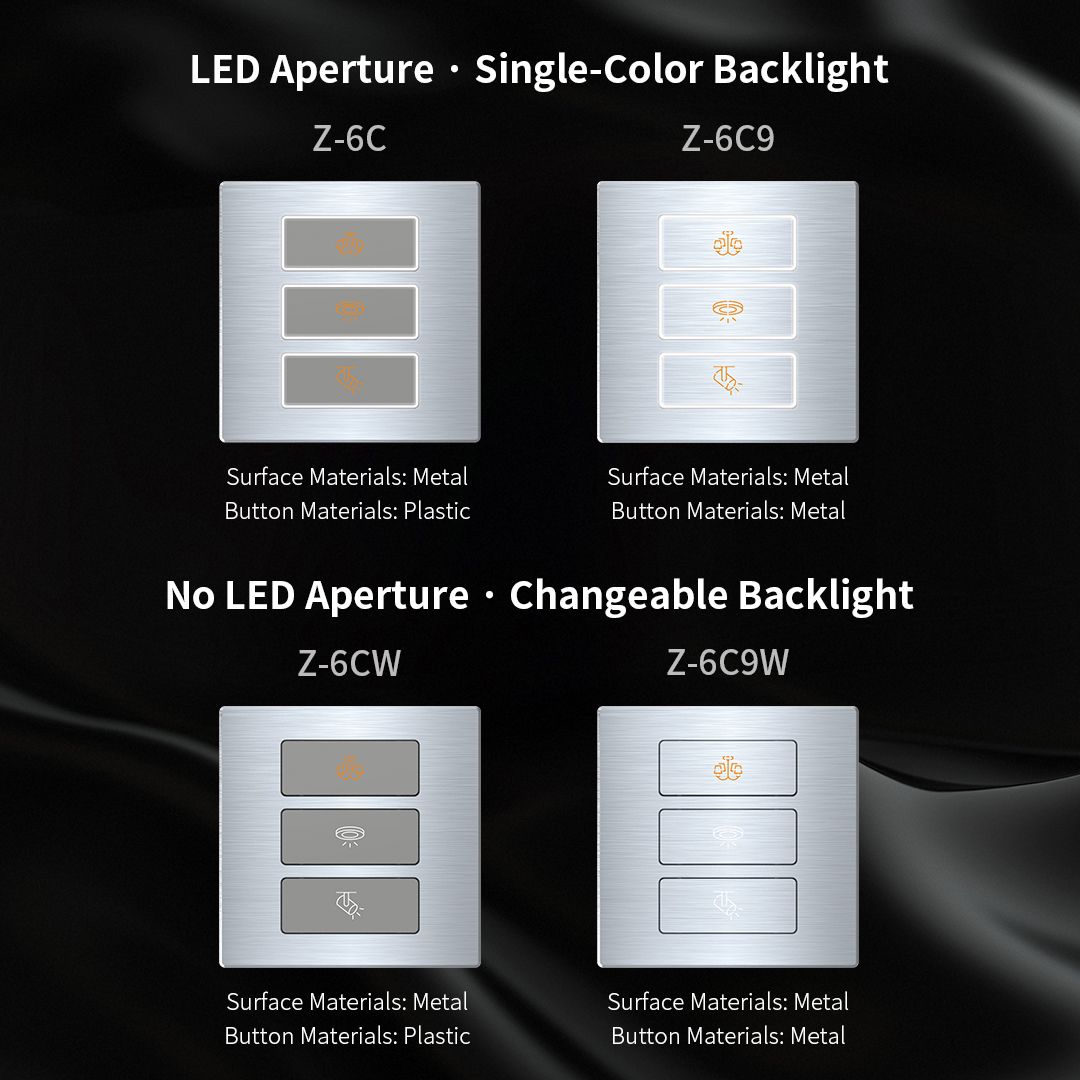

Choose a button material and lighting style to match the preferred product appearance and project specification.

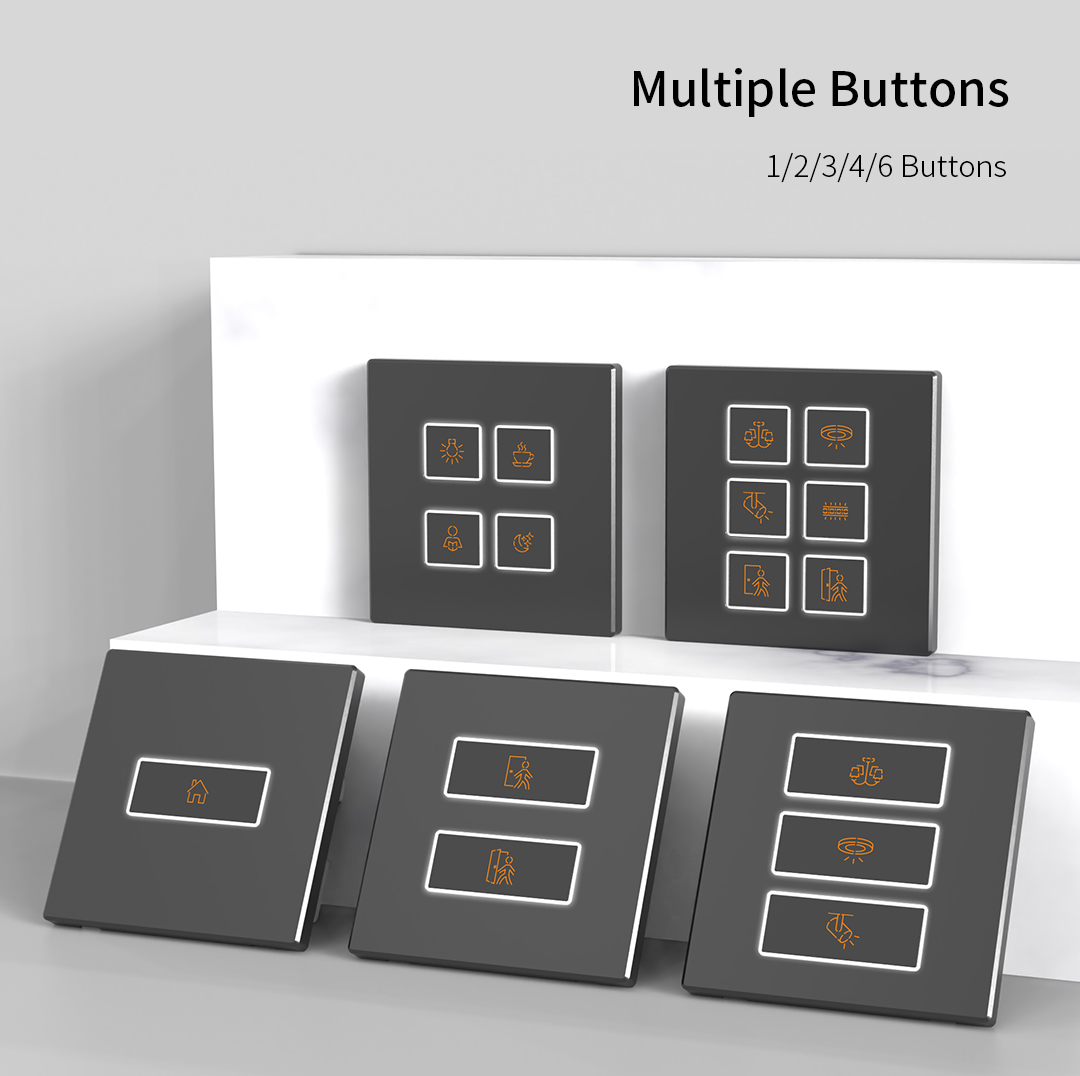

From a single button to a multi-key panel, the available configurations help accommodate different wall control layouts and functional requirements.

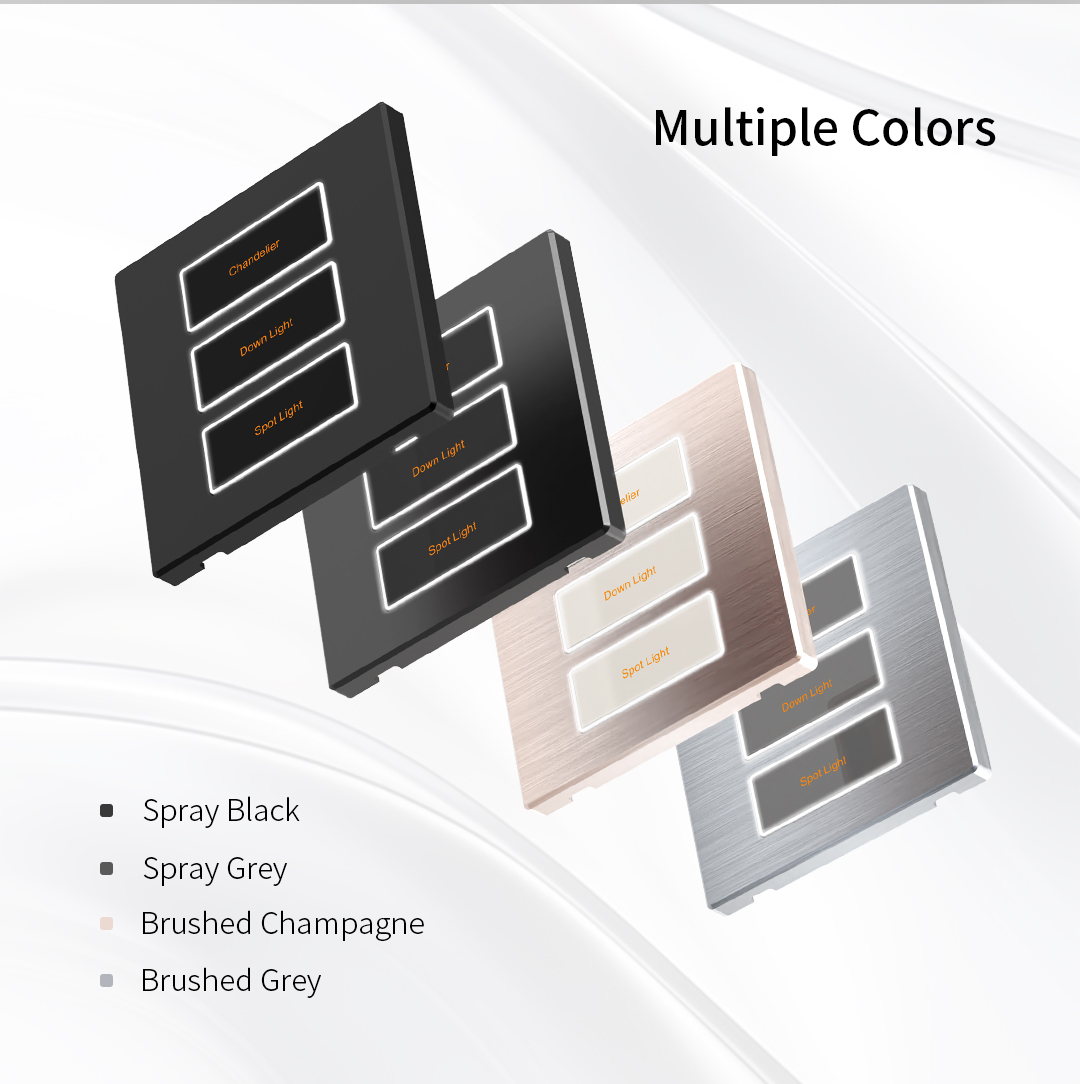

The range of spray-coated and brushed finishes provides options for different interior palettes and material combinations.
For projects with specific design requirements, additional color and finish options can be discussed with Smart Laffey.

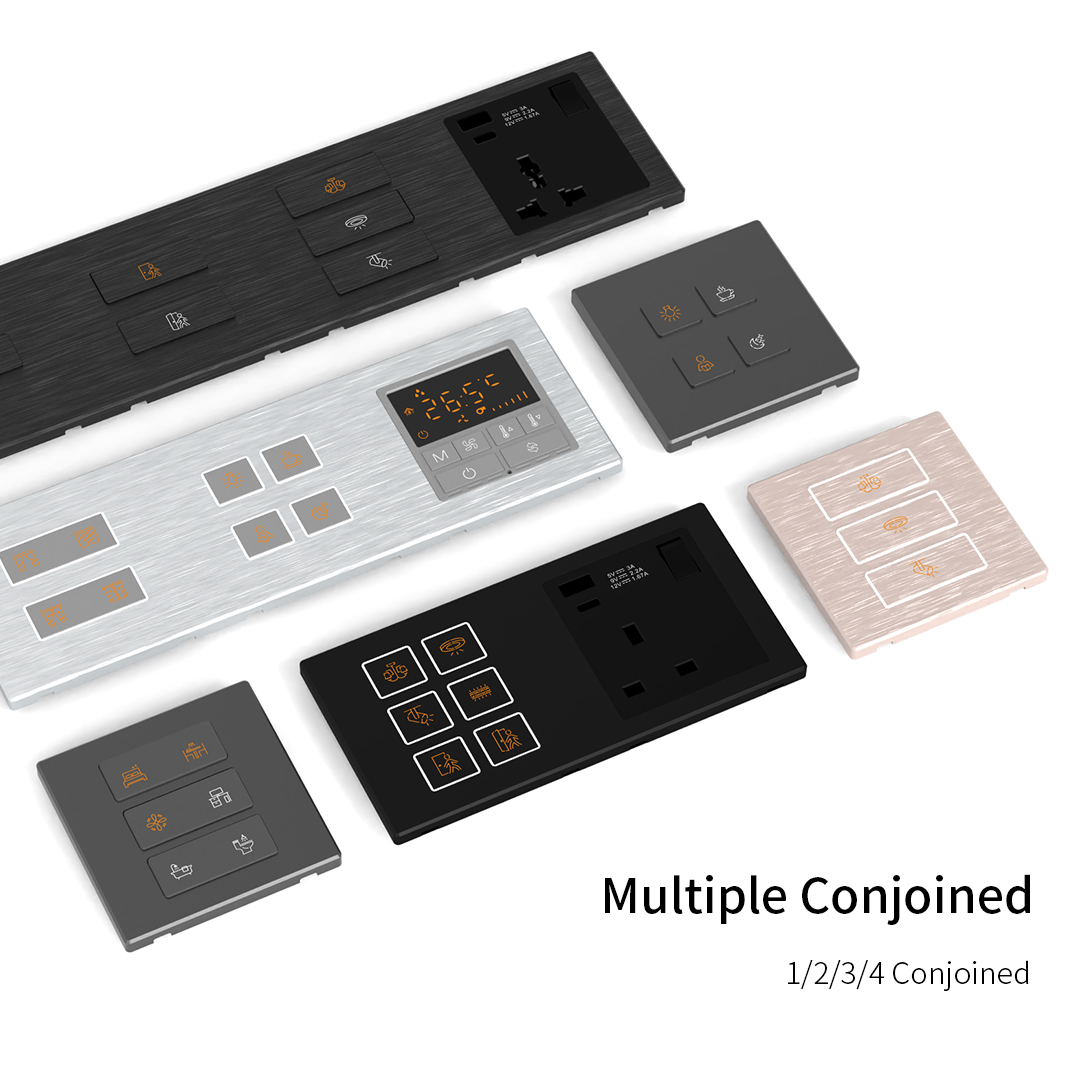

Single and conjoined installations allow switches and other electrical functions to be arranged in a coordinated wall layout for different project needs.

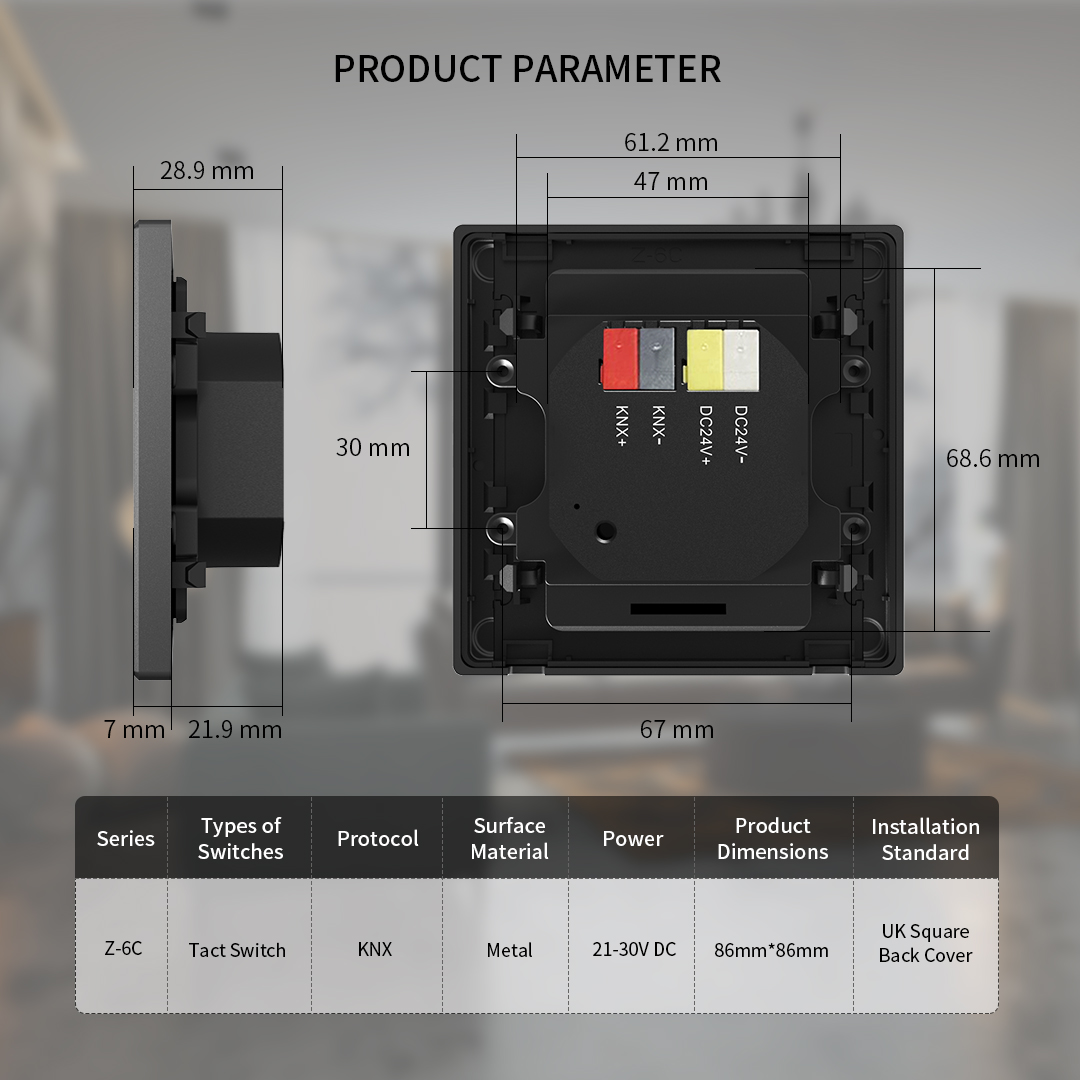

Refer to the product dimensions and installation information when planning panel placement.
| Series | Z-6C |
|---|---|
| Switch Type | Tact Switch |
| Protocol | KNX |
| Surface Material | Metal |
| Product Dimensions | 86mm × 86mm |
| Installation Standard | UK Square Back Cover |
The Smart Laffey Z-6C KNX metal tact switch series is designed for KNX-based building control projects. With a metal frame, plastic or metal button options, two illumination designs, multiple key configurations and a selection of frame finishes, the series supports coordinated wall control in residential, hotel and commercial interiors. Single and conjoined panel arrangements can accommodate different installation requirements. Contact Smart Laffey for product details and project specifications.
