RS485 Smart Switch Z-6C Series (UK)

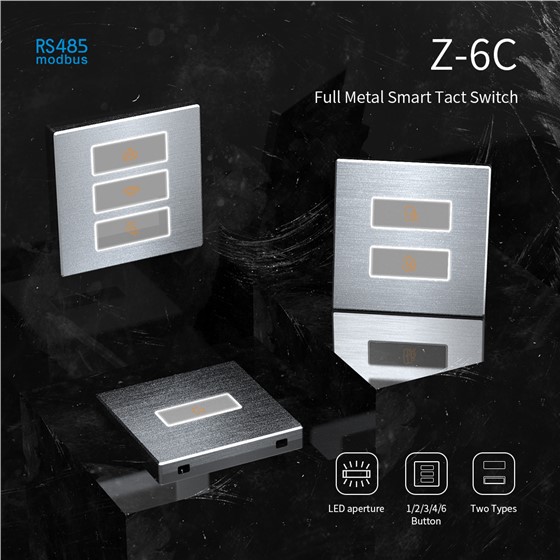

Z-6C RS485 metal tact switch series with metal panels and illuminated buttons
Z-6C Series

RS485 Metal Tact Switch

The Smart Laffey Z-6C Series combines a metal frame with tactile button operation, illuminated status indicators and flexible panel configurations.

Choose from different button materials, lighting designs, key counts and frame finishes to suit residential, hotel and commercial projects.

Flexible Product Configurations Multiple button styles, finishes and conjoined installation options are available for different project requirements.

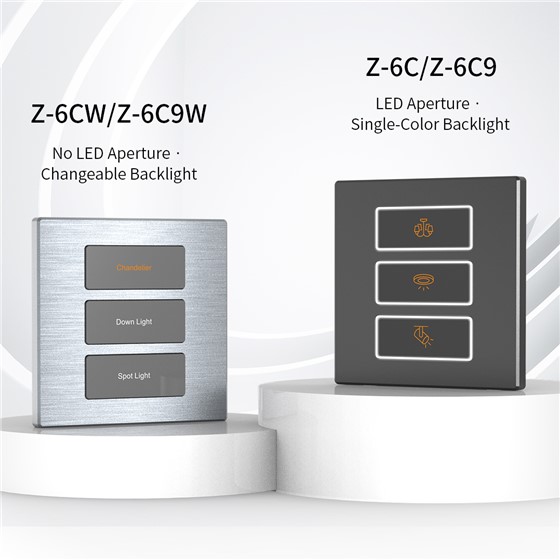

Z-6C and Z-6C9 tact switches with LED apertures compared with Z-6CW and Z-6C9W changeable backlight models
02 / Lighting Design

Two Button Lighting Designs

The series offers two different lighting designs to provide distinct visual feedback during operation.

Changeable Backlight

No outer LED aperture. In standby or OFF status, the button text or icon is orange. When the switch is activated, the indication changes to white.

Fixed Backlight with LED Aperture

The button text or icon remains orange. When activated, the outer LED aperture illuminates white.

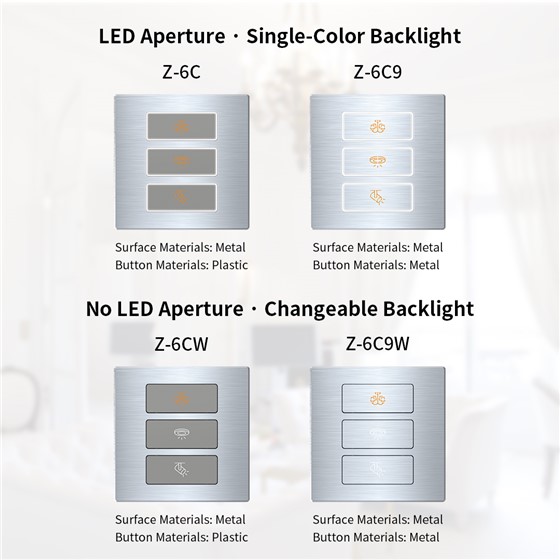

Z-6C, Z-6C9, Z-6CW and Z-6C9W RS485 tact switches showing plastic and metal button options
03 / Materials & Models

Four Button and Material Options

All four versions feature a metal frame. Select plastic or metal buttons together with the required lighting design.

Z-6C Metal frame · Plastic buttons · LED aperture
Z-6C9 Metal frame · Metal buttons · LED aperture
Z-6CW Metal frame · Plastic buttons · Changeable backlight
Z-6C9W Metal frame · Metal buttons · Changeable backlight

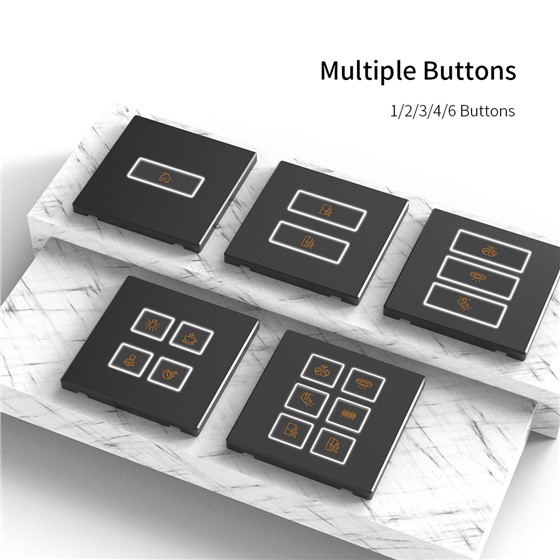

Z-6C RS485 metal tact switch configurations with 1, 2, 3, 4 and 6 buttons
04 / Button Configurations

1, 2, 3, 4 and 6-Button Options

Different key counts accommodate a range of wall control requirements, from single functions to multi-function control panels.

1 Button 2 Buttons 3 Buttons 4 Buttons 6 Buttons
Multiple Key Layouts Select the button count according to the intended control functions and project layout.

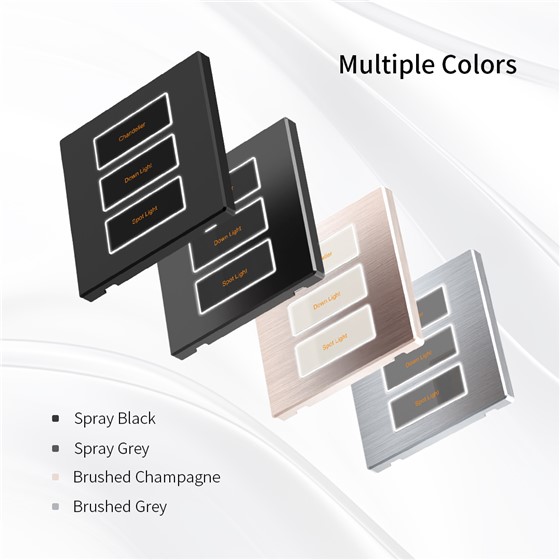

Z-6C metal tact switch frame finishes in spray black, spray grey, brushed champagne and brushed grey
05 / Colors & Finishes

Metal Frame Finishes for Different Interiors

Choose from spray and brushed metal finishes to coordinate with different interior styles.

Spray Black Spray Grey Brushed Champagne Brushed Grey

Other colors and customized finishes can also be discussed for project needs.

Custom Color Options Contact Smart Laffey to discuss preferred frame colors and finishes for your project.

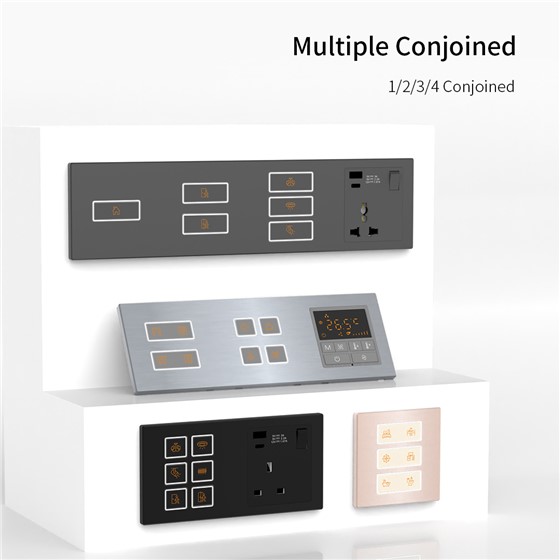

Z-6C RS485 metal tact switches in conjoined panels combined with sockets and thermostats
06 / Panel Combinations

Flexible Single and Conjoined Installations

The Z-6C Series supports single panels and conjoined installations, allowing different control and electrical functions to be arranged within a coordinated wall design.

Single Panel 2-Gang 3-Gang 4-Gang Switch + Socket Switch + Switch Switch + Thermostat
Integrated Wall Control Combine switches, sockets and thermostats according to the installation layout and project requirements.

Z-6C RS485 Metal Tact Switch for Smart Building Projects

The Smart Laffey Z-6C RS485 metal tact switch series features metal frames, plastic or metal buttons, two lighting designs, multiple key configurations and a range of frame finishes. Single and conjoined panel layouts can integrate switches, sockets and thermostats for residential, hotel and commercial smart building projects. Contact Smart Laffey to discuss product configurations and customization.
